How MINI Komplett Works
Focus on three key parts
User-friendly
Specifically designed with a focus on user-friendliness and packed with smart features.
All equipment, control panel, and service points are managed from a single access door. The hose reel is integrated into the machine and can be easily wound out when in use.
2. Reliable in operation
Designed with a focus on maximum reliability and minimal downtime. Each component has been carefully selected to ensure flawless performance. All components are accessible through a single access door to facilitate quick and efficient service.
3. Lightweight and portable

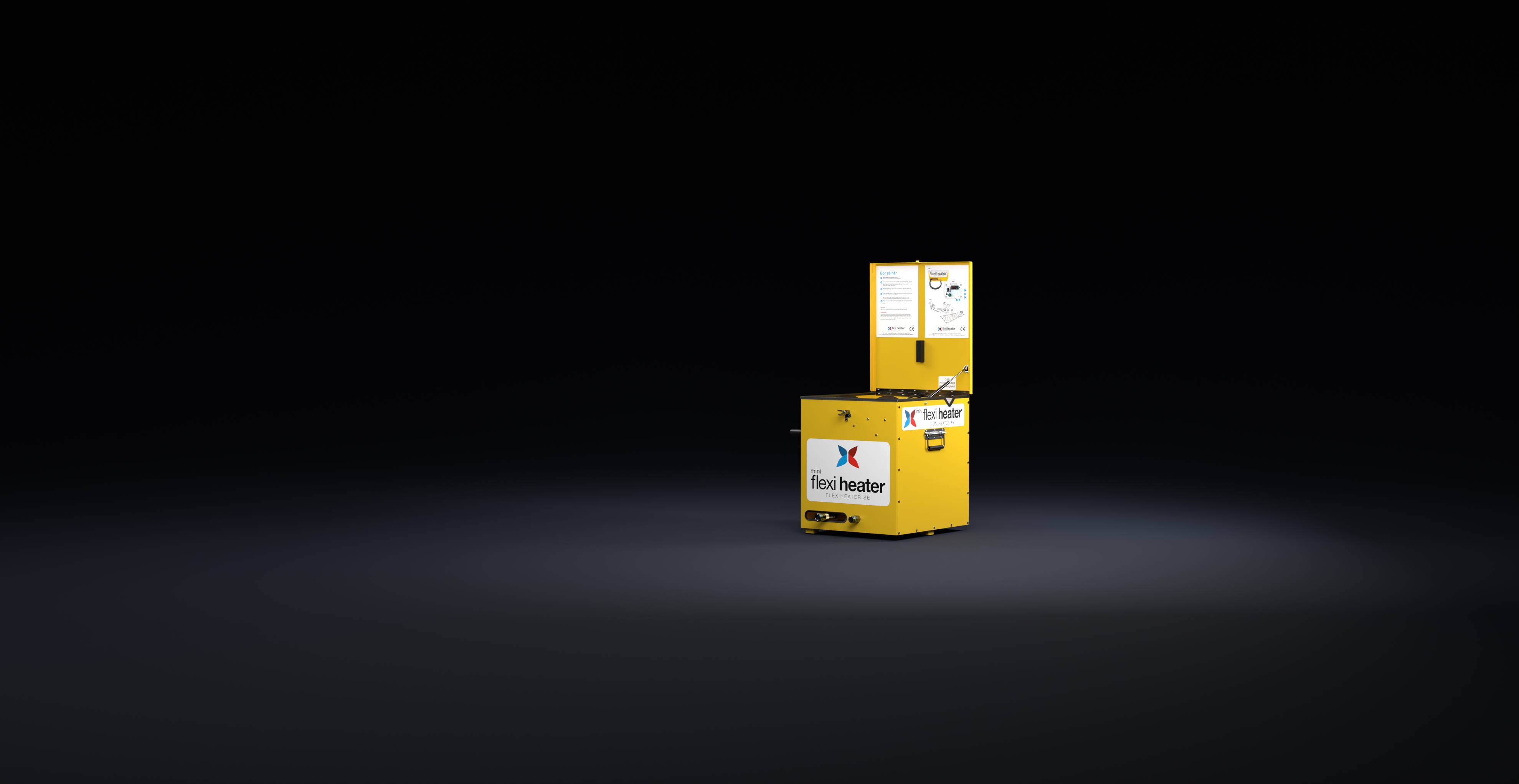

Designed for lightweight and easy use, the Flexi Heater Mini Komplett is compact in size and weighs only 63 kg. The machine fits easily into a regular car and includes all the essentials for simple operation.
Large capacity
30 cm
Ground per day
Thaws 20-50 m²
Area of use
Frost protection
Damage restoration
Concrete curing
Heating
Dehumidification
Ground thawing
1
Ground thawing
2
Dehumidification
3
Frostskydd
3
Frost protection
Concrete curing
4
Heating
5
Damage restoration
6
Technical Specifications
-
100% electric-powered with no emissions
-
Low energy consumption
-
Cost-effective
-
Even heat distribution
-
Compact size and low weight
ADVANTAGES
This ground thawer is electric-powered and can be operated with either single-phase 230 volts or three-phase 400 volts.
-
At 230 volts: One hose reel can be used with full power. As an option, two hose reels can be used with reduced heating capacity.
-
At 400 volts: Up to three hose reels can be used.
FUEL TYPE
Flexi Heater AB sells machines with annual service contracts. All Flexi Heater machines should undergo an annual check, service, and inspection of vital components to prevent major machine damage and ensure the warranty remains valid.
SERVICE
Heat Transport Fluid: Propylene glycol
Total Hose Length: 50 meters
Number of Hose Circuits: 1 x 50 meters
Hose Temperature: Up to 90°C
Heat Output: 2-8 kW
Dimensions: 520 x 225 x 525 mm
Total Weight: 63 kg
TECHNICAL SPECIFICATIONS
-
Single-phase 230V 10 Amp = 2000W
-
Single-phase 230V 13 Amp = 3000W
-
Three-phase 400V 16 Amp = 8000W
POWER REQUIREMENTS AND OUTPUT
-
Thawing of ground, ice, and snow
-
Frost protection
-
Ditches, trenches, or waterways
-
Building heating
-
Building dehumidification
-
Damage restoration
-
Concrete curing
-
Thawing and dehumidification of equipment, machines, feed, etc.
AREA OF USE
